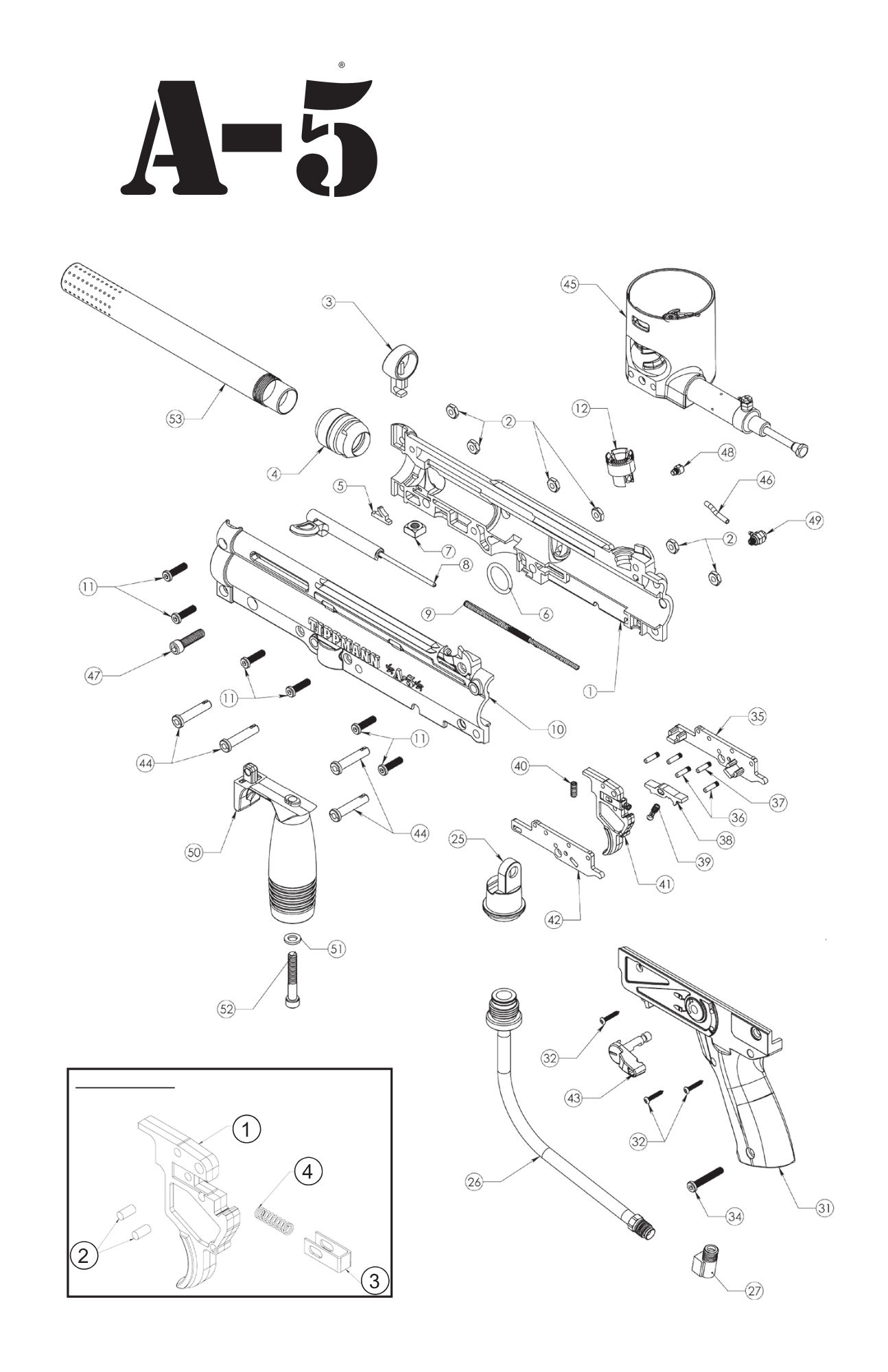

Tippmann A-5 Parts by Diagram/Manual

View Diagram/Manual

No. Part Name Price
(1)
2010 A-5 RECEIVER RIGHT 2010 A-5 RECEIVER RIGHT
$67.95
(2)
BLACK HEX NUT #10-32X3/8 BLACK HEX NUT #10-32X3/8
$1.95
(3)
A-5 FRONT SIGHT A-5 FRONT SIGHT
$4.95
(4)
A-5/X7/PHENOM BARREL ADAPTER COMPLETE A-5/X7/PHENOM BARREL ADAPTER COMPLETE
$26.95
(5)
BALL LATCH - ORANGE BALL LATCH - ORANGE
$3.95
(6)
O-RING 2-116-N70 O-RING 2-116-N70
$1.95
(7)
SQUARE NUT BLACK 1/4 - 20 SQUARE NUT BLACK 1/4 - 20
$1.95
(8)
A-5/X7 COCKING HANDLE A-5/X7 COCKING HANDLE
$14.95
(9)
A-5/X7 COCKING HANDLE SPRING A-5/X7 COCKING HANDLE SPRING
$1.95
(10)
2010 A-5 RECEIVER LEFT 2010 A-5 RECEIVER LEFT
$67.95
(11)
BOLT LHSHCS 10-32 X .625 BOLT LHSHCS 10-32 X .625
$1.95
(12)
A-5 REAR SIGHT - PLASTIC A-5 REAR SIGHT - PLASTIC
$14.95
(13)
A-5/98/X7 FRONT BOLT A-5/98/X7 FRONT BOLT
$7.95
(14)
O-RING BUNA BLACK 2-015 O-RING BUNA BLACK 2-015
$1.95
(15)
A-5/X7/98 LINKAGE ARM A-5/X7/98 LINKAGE ARM
$3.95
(16)
A-5/X7 POWER TUBE A-5/X7 POWER TUBE
$15.95
(17)
SCREW SHSS 5/16-24 X 7/16 SCREW SHSS 5/16-24 X 7/16
$1.95
(18)
A-5 VALVE COMPLETE A-5 VALVE COMPLETE
$39.95
(19)
A-5/X7 REAR BOLT A-5/X7 REAR BOLT
$23.95
(20)
O-RING CAST URETHANE 2-019, 90A O-RING CAST URETHANE 2-019, 90A
$2.95
(21)
A-5/X7 BOLT PLUG A-5/X7 BOLT PLUG
$8.95
(22)
PIN GUIDE FLT HD 0.117 X 2.085 PIN GUIDE FLT HD 0.117 X 2.085
$4.95
(23)
A-5/98/PC/X7 DRIVE SPRING A-5/98/PC/X7 DRIVE SPRING
$4.95
(24)
A-5 END CAP ASSEMBLY A-5 END CAP ASSEMBLY
$23.95
(25)
TOMBSTONE ADAPTER TOMBSTONE ADAPTER
$26.95
(27)
X7/A-5/PRO INVERTED ELBOW X 1/8 NPT - BLACK X7/A-5/PRO INVERTED ELBOW X 1/8 NPT - BLACK
$5.95
(28)
2010 A-5 LOWER RECEIVER - RIGHT 2010 A-5 LOWER RECEIVER - RIGHT
$17.95
(30)
A-5 DOUBLE TRIGGER GUARD A-5 DOUBLE TRIGGER GUARD
$10.95
(31)
2010 A-5 LOWER RECEIVER - LEFT 2010 A-5 LOWER RECEIVER - LEFT
$17.95
(32)
SCREW GRIP 4 X 5/8 SCREW GRIP 4 X 5/8
$1.95
(33)
A-5 TANK ADAPTER A-5 TANK ADAPTER
$18.95
(34)
BOLT LHSHCS 10-32 X 1.125 BOLT LHSHCS 10-32 X 1.125
$1.95
(35)
TRIGGER PLATE RIGHT TRIGGER PLATE RIGHT
$14.95
(36)
PIN DOWEL KNURL 1/8 x 1/2 PIN DOWEL KNURL 1/8 x 1/2
$2.95
(37)
PIN DOWEL KNURL BLACK DP 1/8D X 1/2L PIN DOWEL KNURL BLACK DP 1/8D X 1/2L
$3.95
(38)
A-5/98 SEAR A-5/98 SEAR
$14.95
(39)
SEAR SPRING BLUE SEAR SPRING BLUE
$1.95
(40)
TRIGGER SPRING RED TRIGGER SPRING RED
$1.95
(42)
TRIGGER PLATE - LEFT TRIGGER PLATE - LEFT
$14.95
(43)
A-5 H.E. E-GRIP SAFETY A-5 H.E. E-GRIP SAFETY
$7.95
(44)
A-5 PUSH PIN A-5 PUSH PIN
$3.95
(45)
PHENOM/NEW A-5 CFS ASSEMBLY PHENOM/NEW A-5 CFS ASSEMBLY
$64.95
(46)
HOSE BLACK POLYURETHANE 5/64 X 1 HOSE BLACK POLYURETHANE 5/64 X 1
$2.95
(48)
SCREW NYLON 10-32 X .25 PLUG POWER TUBE SCREW NYLON 10-32 X .25 PLUG POWER TUBE
$1.95
(49)
BANJO FITTING BANJO FITTING
$7.95
(50)
2010 A-5 FRONT GRIP 2010 A-5 FRONT GRIP
$14.95
(51)
WASHER TPHS 8-32 X .25 WASHER TPHS 8-32 X .25
$1.95
(52)
BOLT - 1/4 -20UNC X 1.5 SHCS BOLT - 1/4 -20UNC X 1.5 SHCS
$1.95
(53)
2010 A-5 Barrel 2010 A-5 Barrel
$50.95

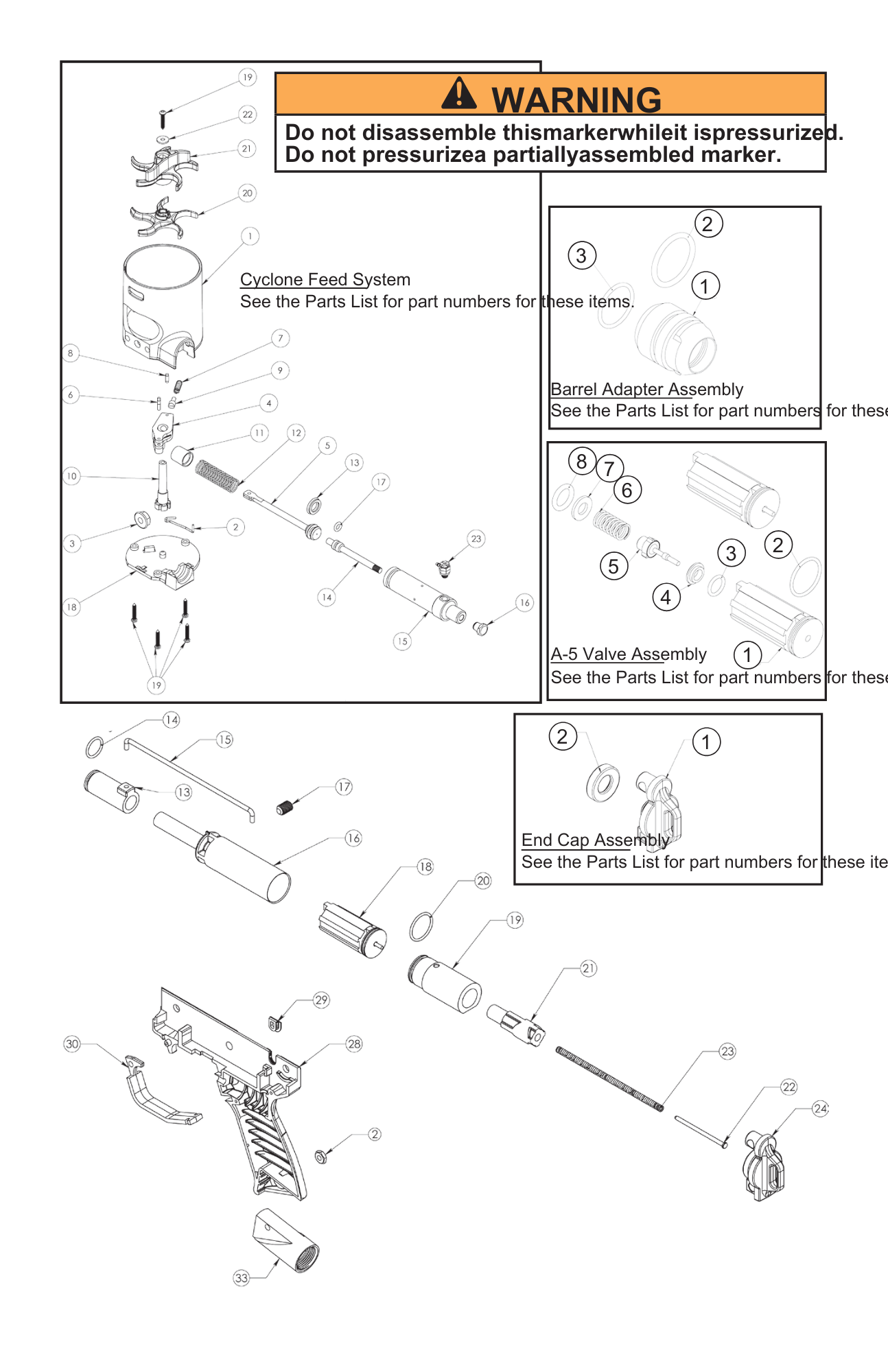

Cyclone Feed System Assembly

No. Part Name Price
(1)
FEEDER HOUSING FEEDER HOUSING
$44.95
(2)
FEEDER RATCHET SPRING FEEDER RATCHET SPRING
$1.95
(4)
FEEDER RATCHET FEEDER RATCHET
$2.95
(5)
FEEDER RATCHET FEEDER RATCHET
$2.95
(6)
PIN DOWEL 3/32D X 7/16L PIN DOWEL 3/32D X 7/16L
$1.95
(7)
NEW CFS SPRING NEW CFS SPRING
$1.95
(8)
PIN DOWEL 3/32D X 5/16L PIN DOWEL 3/32D X 5/16L
$1.95
(10)
FEEDER AXLE FEEDER AXLE
$2.95
(12)
CYLINDER SPRING CYLINDER SPRING
$1.95
(13)
O-RING PISTON BUNA U-CUP O-RING PISTON BUNA U-CUP
$2.95
(14)
FEEDER RESET ROD FEEDER RESET ROD
$1.95
(15)
X7/A-5/PHENOM FEEDER CYLINDER X7/A-5/PHENOM FEEDER CYLINDER
$29.95
(17)
O-RING - 2-008 O-RING - 2-008
$1.95
(18)
FEEDER BOTTOM PLATE-BLACK FEEDER BOTTOM PLATE-BLACK
$2.95
(19)
SCREW GRIP 4 X 5/8 SCREW GRIP 4 X 5/8
$1.95
(20)
T20 FEEDER SPROCKET - LOWER T20 FEEDER SPROCKET - LOWER
$14.95
(21)
T20 FEEDER SPROCKET - UPPER T20 FEEDER SPROCKET - UPPER
$8.95
(22)
WASHER FLAT #4 WASHER FLAT #4
$1.95
(23)
BANJO FITTING BANJO FITTING
$7.95

Trigger Assembly

No. Part Name Price
(1)
X7 Trigger X7 Trigger
$14.95
(2)
PIN DOWEL 1/8D X 1/4L NO CHAMFER PIN DOWEL 1/8D X 1/4L NO CHAMFER
$1.95
(3)
98 TRIGGER RETURN SLIDE 98 TRIGGER RETURN SLIDE
$1.95
(4)
SEAR SPRING BLUE SEAR SPRING BLUE
$1.95

Valve Assembly

No. Part Name Price
(1)
Tippmann A5/ X7 Valve Body Tippmann A5/ X7 Valve Body
$35.95
(2)
O-RING CAST URETHANE 2-019, 90A O-RING CAST URETHANE 2-019, 90A
$2.95
(3)
O-RING CAST URETHANE 2-012 O-RING CAST URETHANE 2-012
$2.95
(4)
VALVE SEAT VALVE SEAT
$11.95
(5)
VALVE PLUNGER VALVE PLUNGER
$11.95
(6)
A-5/X7 VALVE SPRING A-5/X7 VALVE SPRING
$1.95
(7)
WASHER FLAT 9/32 WASHER FLAT 9/32
$1.95
(8)
A-5/X7 VALVE SPRING A-5/X7 VALVE SPRING
$1.95

End Cap Assembly

No. Part Name Price
(1)
A-5 END CAP - 08 A-5 END CAP - 08
$14.95
(2)
IMPACT WASHER - A-5/X7 END CAP IMPACT WASHER - A-5/X7 END CAP
$4.95

Barrel Adapter Assembly

No. Part Name Price
(2)
O-RING, BUNA, 70A, 2-119 O-RING, BUNA, 70A, 2-119
$1.95
(3)
A-5 O-RING BARREL BUNA 13/16 X 15/16 X 1/16 A-5 O-RING BARREL BUNA 13/16 X 15/16 X 1/16
$1.95
