Tippmann Stormer (basic,tactical,and elite)

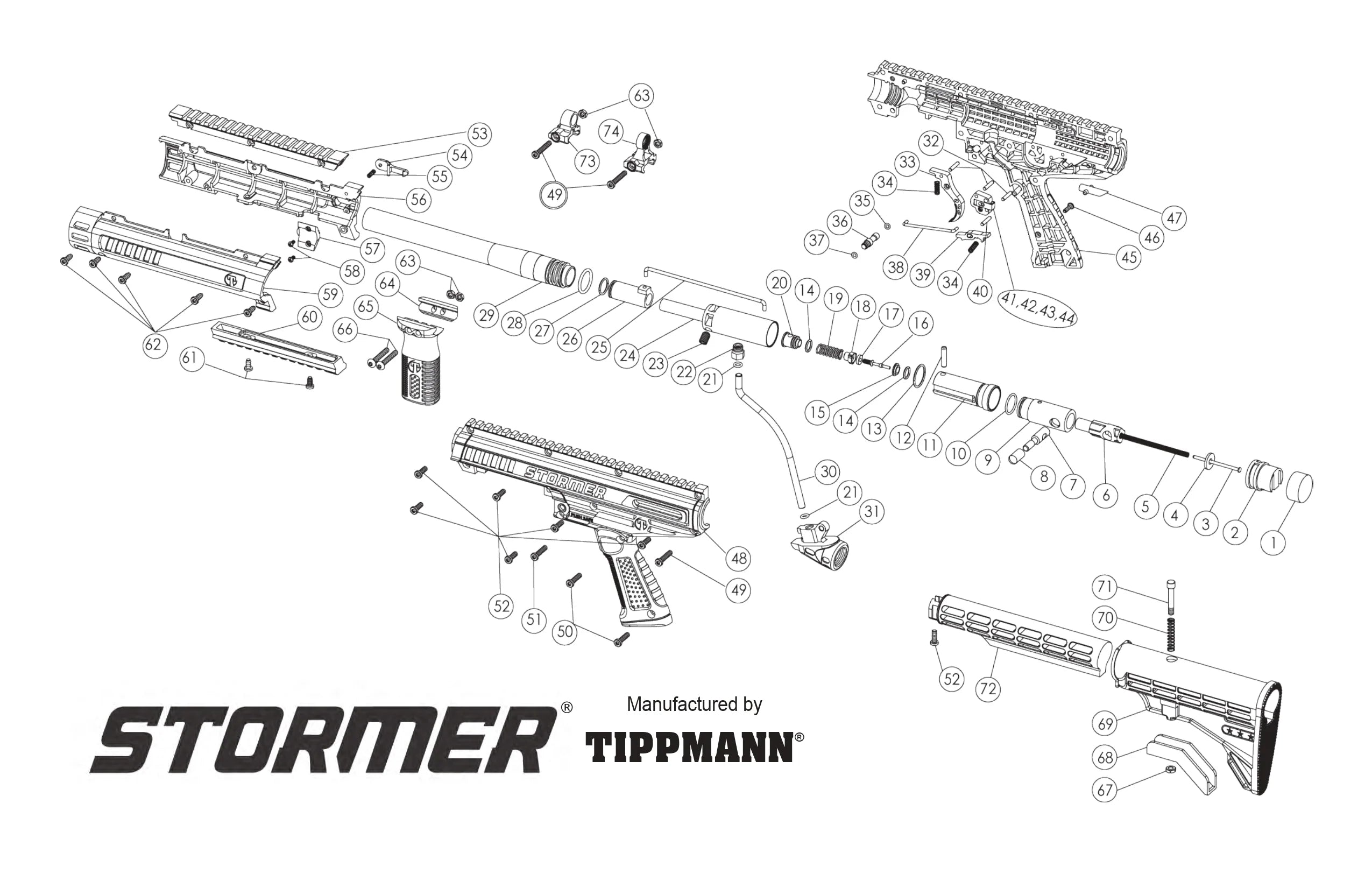

View Diagram/Manual

No. Part Name Price
(2)
END CAP END CAP
$14.95
(3)
RATCHET SPRING GUIDE RATCHET SPRING GUIDE
$2.95
(6)
BOLT PLUG BOLT PLUG
$8.95
(7)
98 BOLT HANDLE 98 BOLT HANDLE
$14.95
(9)
98 REAR BOLT 98 REAR BOLT
$23.95
(10)
TMC Small Rear Bolt O-Ring PU 90 TMC Small Rear Bolt O-Ring PU 90
$1.95
(11)
98 VALVE BODY 98 VALVE BODY
$29.95
(12)
TMC .68 cal Valve Lock Pin TMC .68 cal Valve Lock Pin
$0.95
(14)
Factory Parts Tippmann TMC Factory Parts Tippmann TMC
$1.95
(15)
FT-12 FRONT VALVE SEAT FT-12 FRONT VALVE SEAT
$11.95
(17)
Spyder Cup Seal Assembly .68 cal Spyder Cup Seal Assembly .68 cal
$3.95
(18)
X7 CUP SEAL STEM COMPLETE X7 CUP SEAL STEM COMPLETE
$11.95
(19)
GRYPHON FX Valve SPRING-NEW GRYPHON FX Valve SPRING-NEW
$0.95
(20)
98 VALVE PLUG 98 VALVE PLUG
$11.95
(21)
GRYPHON GAS LINE O-RING 009 70S GRYPHON GAS LINE O-RING 009 70S
$1.95
(24)
TMC Power Tube TMC Power Tube
$10.95
(25)
A-5/X7/98 LINKAGE ARM A-5/X7/98 LINKAGE ARM
$3.95
(26)
FRONT BOLT FRONT BOLT
$41.95
(27)
Factory Parts Tippmann TMC 68 Cal Factory Parts Tippmann TMC 68 Cal
$1.95
(28)
Barrel O-ring Barrel O-ring
$0.95
(30)
CRONUS GAS LINE CRONUS GAS LINE
$20.95
(31)
Factory Parts Tippmann TMC/Stromer Factory Parts Tippmann TMC/Stromer
$26.95
(33)
Factory Part Tippmann Stormer Trigger Factory Part Tippmann Stormer Trigger
$2.95
No. Part Name Price
(34)
SEAR SPRING BLUE SEAR SPRING BLUE
$1.95
(35)
O-RING BUNA SAFETY 1/8 X 1/4 X 1/16 O-RING BUNA SAFETY 1/8 X 1/4 X 1/16
$1.95
(36)
SAFETY PIN SAFETY PIN
$2.95
(37)
O-RING - RED BUNA SAFETY 1/8 X 1/4 X 1/16 O-RING - RED BUNA SAFETY 1/8 X 1/4 X 1/16
$1.95
(38)
CRONUS TRIGGER LINKAGE ARM CRONUS TRIGGER LINKAGE ARM
$10.95
(39)
A-5/98 SEAR A-5/98 SEAR
$14.95
(40)
Dowel Pin .125 Dia X .500 Dowel Pin .125 Dia X .500
$0.95
(41)
Factory Parts Tippmann TMC Factory Parts Tippmann TMC
$4.95
(42)
Factory Parts Tippmann TMC Factory Parts Tippmann TMC
$4.95
(43)
98 TRIGGER RETURN SLIDE 98 TRIGGER RETURN SLIDE
$1.95
(45)
Receiver, Right Receiver, Right
$17.95
(46)
Trigger Screw Trigger Screw
$3.95
(47)
Factory Parts Tippmann TMC Factory Parts Tippmann TMC
$4.95
(48)
RECEIVER, LEFT RECEIVER, LEFT
$37.95
(51)
SCREW 10-32 X 22.8 MM LHSHCS SCREW 10-32 X 22.8 MM LHSHCS
$0.95
(63)
HEX NUT BLACK HHC #10-32 x 5/16 HEX NUT BLACK HHC #10-32 x 5/16
$1.95
(66)
Screw, 10-32 X 1.5 Screw, 10-32 X 1.5
$3.95
(68)
RELEASE, COLLAPSIBLE STOCK RELEASE, COLLAPSIBLE STOCK
$1.95
(69)
STOCK, SLIDE COLLAPSIBLE STOCK, SLIDE COLLAPSIBLE
$126.95
(67)
BLACK HEX NUT #10-32X3/8 BLACK HEX NUT #10-32X3/8
$1.95
(73)
FRONT SIGHT CR - Tan FRONT SIGHT CR - Tan
$4.95
(74)
REAR SIGHT CR REAR SIGHT CR
$4.95
(75)
SCREW SHCS 1/4-20 X 1 SCREW SHCS 1/4-20 X 1
$1.95
(76)
Factory Parts Tippmann TMC Factory Parts Tippmann TMC
$0.95
(77)
FT Lite 68 Cal Feed Elbow Assembly FT Lite 68 Cal Feed Elbow Assembly
$17.95
(78)
SQUARE NUT BLACK 1/4 - 20 SQUARE NUT BLACK 1/4 - 20
$1.95
(80)
TMC MAG FED BALL LATCH TMC MAG FED BALL LATCH
$2.95
No. Part Name Price
(84)
Pic Rail Pic Rail
$6.95
(86)
Factory Parts Tippmann TMC Factory Parts Tippmann TMC
$2.95
(88)
T19 STRAIGHT MAGAZINE ASSEMBLY COMPLETE T19 STRAIGHT MAGAZINE ASSEMBLY COMPLETE
$29.95
(89)
TMC Dummy Mag Assembly TMC Dummy Mag Assembly
$8.95
(91)
TIPPMANN COLLAPSIBLE FOLDING STOCK TIPPMANN COLLAPSIBLE FOLDING STOCK
$53.95
