Tippmann TipX Parts

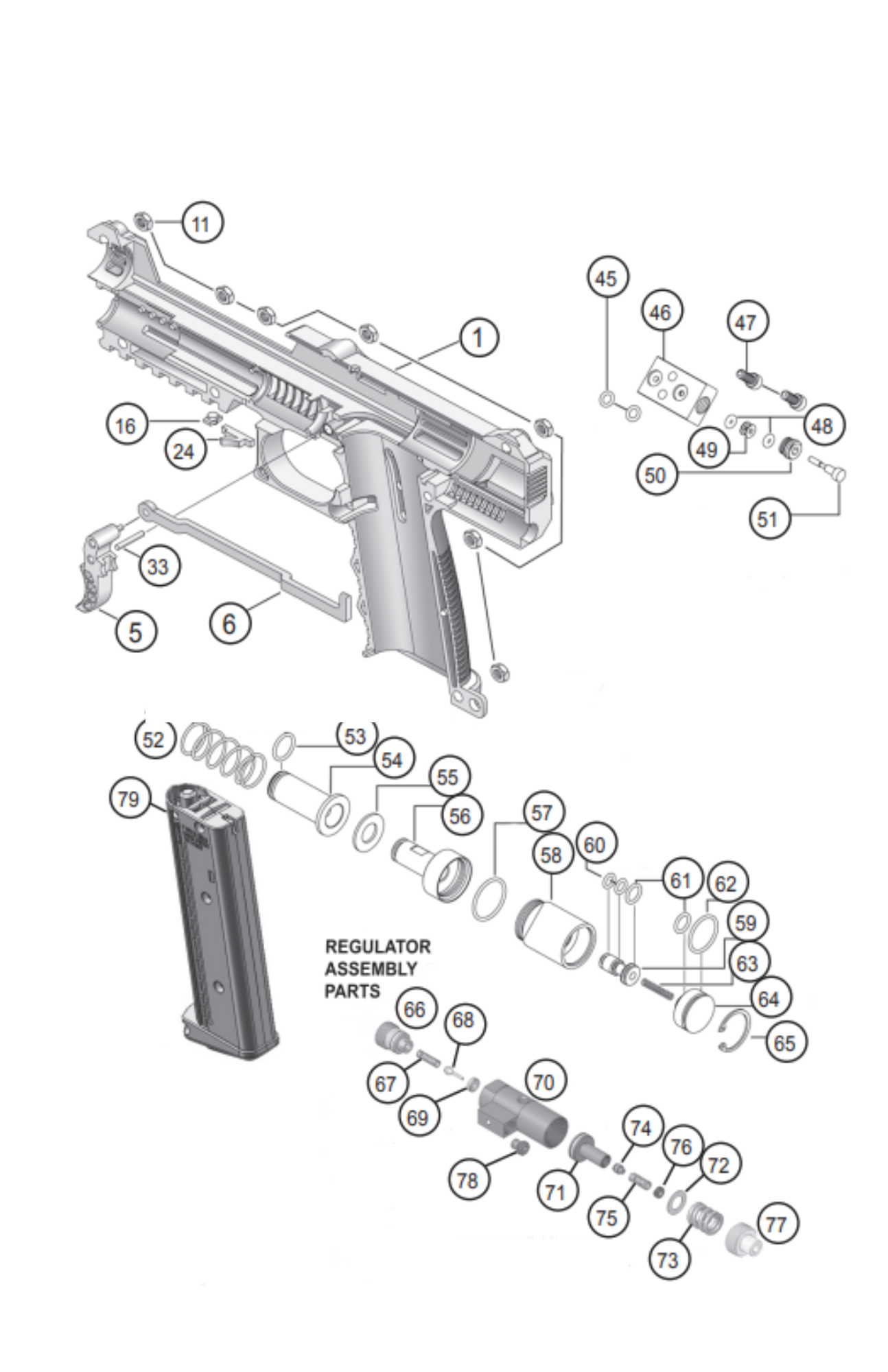

View Diagram/Manual

No. Part Name Price
(1)
BLACK GRYPHON OUTER RECEIVER-RIGHT BLACK GRYPHON OUTER RECEIVER-RIGHT
$23.95
(1)
PISTOL RECEIVER-DESERT TAN-RIGHT PISTOL RECEIVER-DESERT TAN-RIGHT
$23.95
(2)
BLACK GRYPHON OUTER RECEIVER-LEFT BLACK GRYPHON OUTER RECEIVER-LEFT
$23.95
(2)
PISTOL RECEIVER-DESERT TAN-LEFT PISTOL RECEIVER-DESERT TAN-LEFT
$23.95
(3)
T19 MAGAZINE RELEASE ACTUATOR T19 MAGAZINE RELEASE ACTUATOR
$1.95
(4)
T19 MAGAZINE RELEASE T19 MAGAZINE RELEASE
$1.95
(5)
T19 TRIGGER T19 TRIGGER
$14.95
(6)
T19 ACTUATOR LINK T19 ACTUATOR LINK
$1.95
(7)
PUNCTURE VALVE COMPLETE PUNCTURE VALVE COMPLETE
$65.95
(8)
SCREW 10-32 X 22.8 MM LHSHCS SCREW 10-32 X 22.8 MM LHSHCS
$0.95
(10)
SCREW 10-32 X .5 LHSHCH SCREW 10-32 X .5 LHSHCH
$1.95
(11)
Hex Nut (6-32 .25 X .092 Thick) Hex Nut (6-32 .25 X .092 Thick)
$1.95
(13)
Spring, Comp 7.375FL X 0.938Od Spring, Comp 7.375FL X 0.938Od
$2.95
(14)
T19 CO2 CAP RECEIVER INSERT T19 CO2 CAP RECEIVER INSERT
$14.95
(15)
T19 CO2 CAP ASSEMBLY T19 CO2 CAP ASSEMBLY
$45.95
(16)
T19 BREECH WINDOW T19 BREECH WINDOW
$1.95
(17)
PLATINUM 'T' JEWEL TAG PLATINUM 'T' JEWEL TAG
$1.95
(19)
A5/AB Gas Line Complete A5/AB Gas Line Complete
$35.95
(20)
T19 GAS LINE - SHORT - COMPLETE T19 GAS LINE - SHORT - COMPLETE
$7.95
(21)
CROSSOVER REGULATOR ASSEMBLY COMPLETE CROSSOVER REGULATOR ASSEMBLY COMPLETE
$177.95
(22)
T20 SAFETY T20 SAFETY
$14.95
(23)
T19 AIR VALVE ASSEMBLY T19 AIR VALVE ASSEMBLY
$134.95
(24)
T19 1ST STRIKE BALL LATCH T19 1ST STRIKE BALL LATCH
$3.95
(25)
GRYPHON FX BARREL ADAPTER GRYPHON FX BARREL ADAPTER
$16.95
(26)
T19 Barrel Shroud-Anodized T19 Barrel Shroud-Anodized
$19.95
(27)
TiPX Barrel Shroud TiPX Barrel Shroud
$29.95
(28)
98 O-RING KIT 98 O-RING KIT
$10.95
(29)
O Ring- 013/70 Buna O Ring- 013/70 Buna
$1.95
(30)
O Ring - 113/70 Buna O Ring - 113/70 Buna
$0.95
(33)
TRIGGER PIN PLUG TRIGGER PIN PLUG
$3.95

Puncture Valve Assembly parts

No. Part Name Price
(34)
C3 INTERNAL SNAP RING - 1/2 C3 INTERNAL SNAP RING - 1/2
$1.95
(35)
T20 WASHER T20 WASHER
$4.95
(36)
T19 12 GRAM PUNCTURE SEAL T19 12 GRAM PUNCTURE SEAL
$3.95
(37)
ORING 20MM ID X 1MM OD BUNA ORING 20MM ID X 1MM OD BUNA
$0.95
(38)
T19 PUNCTURE PISTON T19 PUNCTURE PISTON
$2.95
(39)
GRYPHON FX Valve SPRING-NEW GRYPHON FX Valve SPRING-NEW
$0.95
(40)
FENIX Valve Spring FENIX Valve Spring
$0.95
(41)
T19 PUNCTURE PIN T19 PUNCTURE PIN
$8.95
(42)
T20 SPIRAL RETAINING RING, .875 BORE T20 SPIRAL RETAINING RING, .875 BORE
$2.95

TiPX Marker Parts List

No. Part Name Price
(43)
PUNCTURE VALVE BODY PUNCTURE VALVE BODY
$33.95
(44)
T19 PUNCTURE PIN CAP T19 PUNCTURE PIN CAP
$4.95

Firing Valve Assembly parts

No. Part Name Price
(46)
T19 Firing Valve Body T19 Firing Valve Body
$10.95
(47)
Valve Body Screw Valve Body Screw
$2.95
(49)
T19 VALVE BUSHING T19 VALVE BUSHING
$4.95
(50)
T19 FIRING VALVE PIN GUIDE T19 FIRING VALVE PIN GUIDE
$4.95
(51)
T19 ACTUATOR PIN T19 ACTUATOR PIN
$5.95

Air Valve Assembly parts

No. Part Name Price
(52)
SPRING KEEPER SPRING KEEPER
$1.95
(53)
BT-4 Part #46 BT-4 Part #46
$3.95
(54)
FRONT BOLT FRONT BOLT
$41.95
(56)
98 CUSTOM POWER TUBE 98 CUSTOM POWER TUBE
$16.95
(58)
CROSSOVER AIR VALVE BODY-ANODIZED CROSSOVER AIR VALVE BODY-ANODIZED
$32.95
(59)
CROSSOVER VALVE SPOOL CROSSOVER VALVE SPOOL
$12.95
(64)
T19 AIR VALVE END CAP T19 AIR VALVE END CAP
$24.95
(65)
Retaining Ring External 18mm Shaft X 1.2mm Thick Retaining Ring External 18mm Shaft X 1.2mm Thick
$1.95

Regulator Assembly parts

No. Part Name Price
(66)
T19 REGULATOR END CAP COMPLETE - NEW T19 REGULATOR END CAP COMPLETE - NEW
$14.95
(67)
#84 Main Regulator Spring #84 Main Regulator Spring
$3.95
(68)
Regulator Plunger (Pin) Regulator Plunger (Pin)
$3.95
(69)
T19 REGULATOR PIN SEAT T19 REGULATOR PIN SEAT
$3.95
(70)
CROSSOVER ASA REGULATOR BODY-ANODIZED CROSSOVER ASA REGULATOR BODY-ANODIZED
$44.95
(71)
CROSSOVER REG PISTON GUIDE CROSSOVER REG PISTON GUIDE
$5.95
(72)
T20 WEAR DISK T20 WEAR DISK
$4.95
(74)
TPX PRESSURE RELIEF SEAL GUIDE COMPLETE TPX PRESSURE RELIEF SEAL GUIDE COMPLETE
$4.95
(76)
Screw Set 3mm X 3mm Cup Point Screw Set 3mm X 3mm Cup Point
$0.95
(77)
T19 REGULATOR ADJUSTMENT CAP T19 REGULATOR ADJUSTMENT CAP
$17.95
(78)
T19 REGULATOR PLUG COMPLETE T19 REGULATOR PLUG COMPLETE
$7.95

Magazine Assembly

No. Part Name Price
(79)
Tipx 7 Ball Magazine (2-Pack) Tipx 7 Ball Magazine (2-Pack)
$44.99
